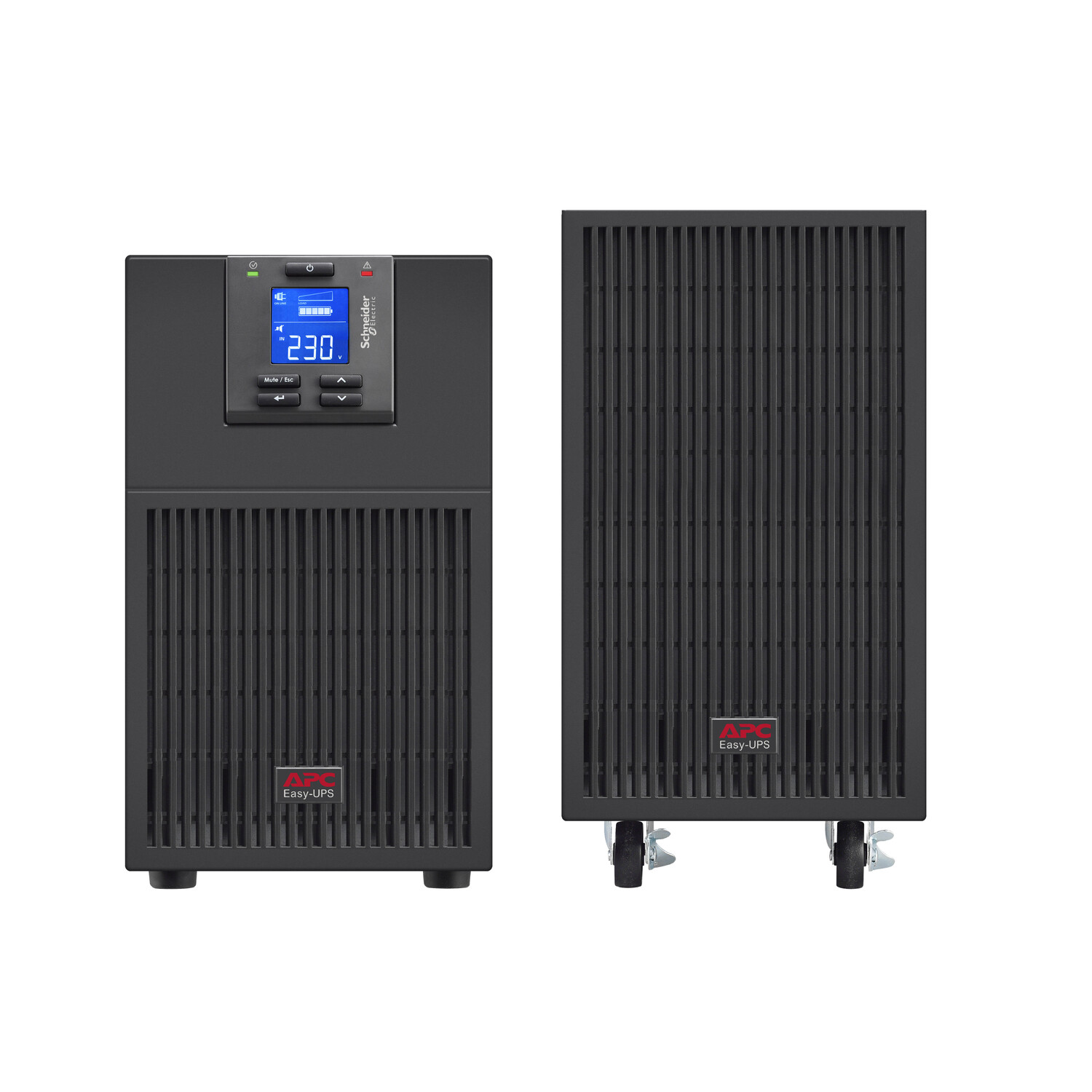

APC by Schneider Electric Easy Online UPS SRV6KIL is a high-efficiency uninterruptible power supply designed to deliver continuous, reliable power for servers, data centers, and critical business systems. With true double-conversion online topology, it ensures clean, stable power output, protecting your equipment from surges, spikes, and power interruptions.

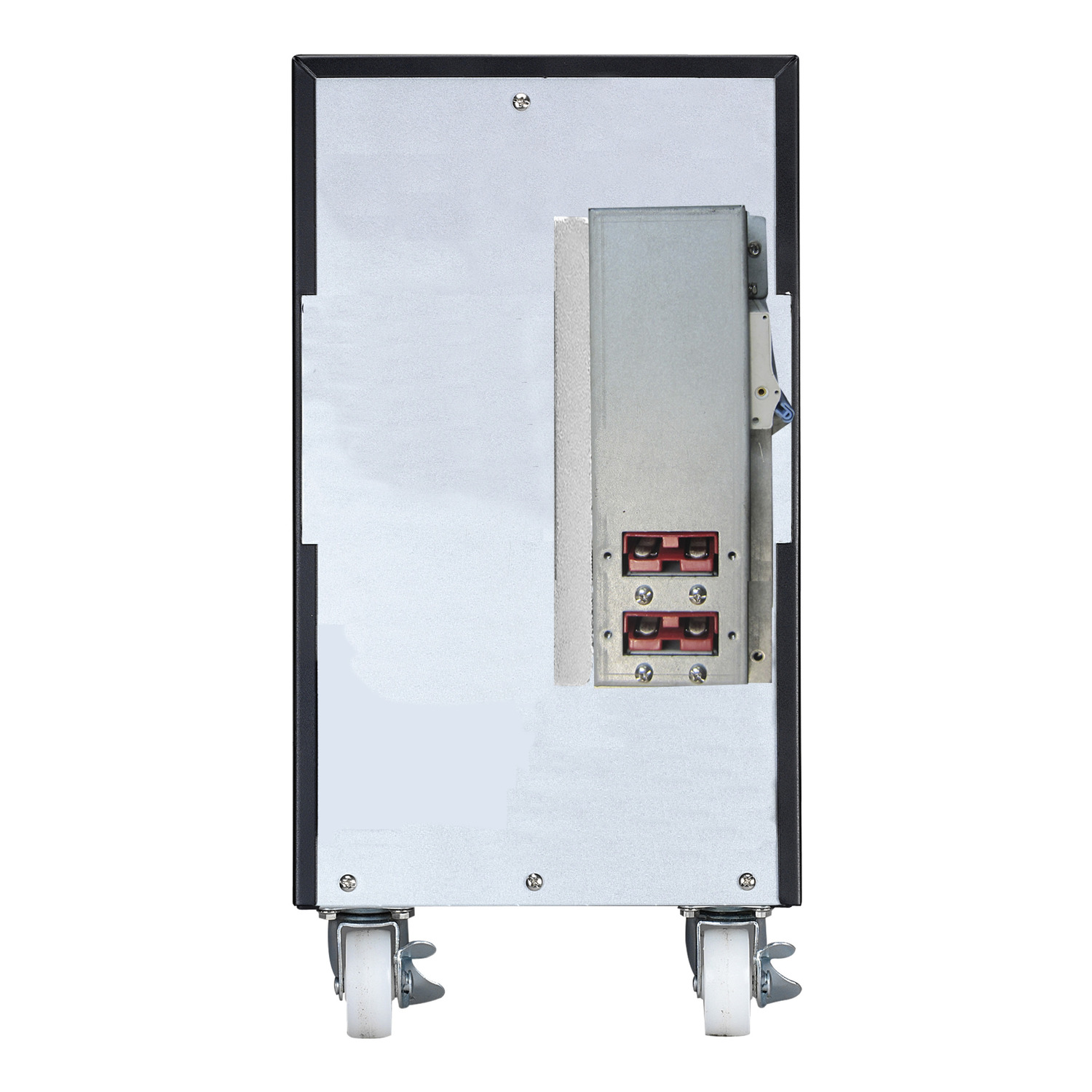

This bundle includes the SRV240BP-9A External Battery Pack, extending backup time for critical operations and ensuring long-lasting performance during power outages. With a 6kVA/6kW capacity, the SRV6KIL provides consistent output even under heavy load conditions, maintaining performance for sensitive IT, network, and industrial applications.
The intuitive LCD display gives clear real-time system information including load, voltage, and battery status, while the smart management software enables remote monitoring and control. Its compact tower design and scalable battery options make it ideal for enterprise-level installations and professional IT environments.
APC Easy UPS SRV6KIL is the perfect balance of performance, reliability, and scalability — engineered for continuous operation and long-term protection of your critical systems.
From the manufacturer
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. With a robust power capacity of 10,000VA / 10,000W, this single-phase UPS ensures uninterrupted power delivery during outages and fluctuations.
One of the standout features of this UPS is its extended runtime capability. Users can connect up to four external battery packs (SRV240BP-9A) to significantly extend backup time. The lead-acid battery is rated for 3 to 5 years and can be fully recharged in approximately 5 hours, ensuring reliable long-term performance.
| Presentation | High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions. |
| Main Input Voltage | 230 V AC 1 phase |
| Product or component type | Uninterruptible power supply (UPS) |
| Other Input Voltage | 220 V |
| 240 V | |
| Output voltage | 230 V AC 1 phase |
| Other Output Voltage | 220 V |
| 240 V | |
| Rated power in W | 6000 W |
| Rated power in VA | 6000 VA |
| Output connector type | Hard wire 3-wire (1P + N + E) for 1 zone(s) |
| Provided equipment | 1 USB cable |
| 1 RS-232 configuration cable | |
| 1 external battery pack | |
| 1 battery cable | |
| 1 user manual | |
| Range of product | Easy UPS On-Line |
| Complementary | |
| Battery type | Lead-acid external included |
| UPS connectivity | Serial port |
| USB port | |
| Available expansion slot | |
| Mounting mode | Tower |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Battery voltage | 240 V |
| Extended runtime | 1 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 5 h |
| Battery life | 3…5 year(s) |
| Battery charger power | 1170 W rated |
| General | |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Colour | Black (RAL 7010) |
| Height | 368 mm |
| Width | 380 mm |
| Depth | 485 mm |
| Net weight | 73 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| USB compatible | Yes |
| Mounting position | Vertical |
| Input | |
| Input voltage limits | 110…300 V 60 % load |
| 176…300 V full load | |
| Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
| Network frequency | 40…70 Hz auto sensing |
| Output | |
| Maximum configurable power in VA | 6000 VA |
| Maximum configurable power in W | 6000 W |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Harmonic distortion | 1% |
| UPS type | Double conversion online |
| Wave type | Sine wave |
| Efficiency | 94 % (full load) |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3:01 |
| Conformance | |
| Product certifications | CE |
| UKCA | |
| EAC | |
| TISI | |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…95 % non-condensing |
| Operating altitude | 0…3000 m |
| Ambient air temperature for storage | -15…60 °C |
| Storage Relative Humidity | 0…95 % non-condensing |
| Storage altitude | 0…15000 m |
| Acoustic level | 55 dBA |
| Heat dissipation | 1172 Btu/h |
| IP degree of protection | IP20 |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Emergency power off | Yes |
| Free slots | 1 |
| Control panel | Multifunction LCD status and control console |
| Surge Protection and Filtering | |
| Surge energy rate | 600 J |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 46 cm |
| Package 1 Width | 57 cm |
| Package 1 Length | 58 cm |
| Package 1 Weight | 79 kg |
APC SRV6KIL On-Line Easy UPS – Description
6000VA/6000W, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime
APC SRV6KIL On-Line Easy UPS is a reliable, high-capacity power solution designed for critical applications in data centers, industrial environments, healthcare facilities, and telecommunications. With a 6000VA/6000W capacity, it ensures consistent and uninterrupted power using online double-conversion technology to protect against power fluctuations and outages. Its tower design operates at 230V and features a hardwired 3-wire (1P+N+E) connection for secure installation.
Unrivaled Power Protection with High-Quality Double-Conversion On-line UPS:
In the realm of uninterruptible power supplies (UPS), our high-quality, double-conversion on-line UPS stands as a pinnacle of power protection, designed to meet the most critical needs in even the most unstable power conditions. With a robust capacity ranging from 600 to 6000 W, this UPS guarantees uninterrupted power supply to safeguard your vital systems.
Lead Time Efficiency:
Experience peace of mind with our product’s availability, as it is typically stocked and ready for immediate deployment. This ensures that you can swiftly implement essential power protection without unnecessary delays, minimizing downtime and maximizing operational efficiency.
Reliable and Extensive Run Time:
Equipped with a powerful 6000 W capacity, this UPS delivers a runtime of 6 minutes and 49 seconds at full load, providing a crucial window for critical operations to continue seamlessly during power fluctuations. The UPS efficiently manages a load range of 600 to 6000 W, meeting the diverse power needs of various applications.
Full Capacity Utilization 100%:
With a commitment to optimal performance, our UPS allows you to maximize its capacity usage, ensuring that your systems can operate at their full potential without compromise. The system is engineered to handle 100% load capacity efficiently, guaranteeing reliable power delivery even during peak demands.
Versatile Input and Output Voltage Configurations:
Our uninterruptible power supply (UPS) offers versatile input and output voltage configurations to adapt to a range of environments. With main input voltage at 230 V and other input voltage options spanning 220 V to 240 V, the UPS caters to varying power infrastructures. Similarly, the main output voltage can be configured between 220 V and 240 V, allowing flexibility to suit specific requirements.
Comprehensive Equipment Package for Seamless Integration:
The APC SRV6KIL UPS comes complete with essential equipment for hassle-free integration into your power system. This includes a USB cable, RS-232 configuration cable, external battery pack, battery cable, and a user manual. These accessories enhance the adaptability and ease of use, ensuring a smooth setup process for users.
Batteries and Runtime Management:
The APC UPS utilizes lead-acid batteries like (SRV240BP-9A), known for their reliability and performance. With a battery voltage of 240 V, the system is designed for efficiency and durability. The battery recharge time of 5 hours and a lifespan of 3 to 5 years further underscore the system’s commitment to long-term, dependable power support.
Cutting-Edge Features for Seamless Integration and Monitoring:
The APC UPS boasts an impressive 94% efficiency at full load, ensuring minimal energy wastage and optimal performance. Configurable for 220, 230, or 240 nominal output voltage, the system adapts intelligently to diverse power scenarios. The internal bypass, available in both automatic and manual modes, adds an extra layer of reliability.
Advanced Communication and Management Capabilities:
Featuring a multifunction LCD status and control console, the UPS provides a user-friendly interface for monitoring and managing critical parameters. Alarms for low battery and continuous tone for overload, along with emergency power-off functionality, offer advanced control and peace of mind during unexpected situations.
Robust Build and Environmental Considerations:
Built for durability and longevity, the APC SRV6KIL UPS has a sleek black design (RAL 7010) and a robust physical structure. Operating within a temperature range of 0 to 40 °C, with a relative humidity tolerance of 0 to 95% non-condensing, the UPS adapts to various environmental conditions. The system’s IP20 degree of protection ensures resistance to dust and solid particles.
Certified Quality and Warranty Assurance:
Our UPS is compliant with CE, UKCA, EAC, and TISI certifications, attesting to its adherence to international standards for quality and safety. The system conforms to EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, and EN/IEC 62040-2:2018, ensuring that it meets the highest industry benchmarks.
Warranty and Customer Assurance:
Backed by a contractual warranty of 2 years, our UPS offers peace of mind and assurance of quality. The warranty covers repair or replacement, showcasing our commitment to customer satisfaction and confidence in the reliability of our product.
